Triac Dimmable LED Driver 30W 12V

32.90

Low stock

SKU: LT-FTPC30V12-DCategories: LED Accessories, LED Power Supplies, LED-drivers 12V

Description

Triac Dimmable LED Driver 30W 12V

POS Triac Dimmable LED Driver. Convenient 50 Watts of power is enough for e.g. 2,5 meters of 10W 12V COB LED strip. This is both Leading edge (RL) and Trailing edge (RC) configurable. Complete adjustability can be achieved with for example ABB 2-100VA dimmer. Electrical number 2619376. Other manufacturers have compatible dimmers for this driver as well. For example Ensto, Schneider and several other generally used brands in Finland.

If you would like a remote controllable LED dimmer, you will not need this driver. If you would like an LED dimmer that is remote controllable, a suitable LED driver in that case is a normal non-dimmable LED driver where the dimming happens after the driver. In non-dimmable drivers there is no mention of triac, dali or other dimming techniques that would happen on the front side of the driver. For non-dimmable drivers there are great wireless RF dimmers available.

Installing a dimmable LED driver

This LED driver is suitable for e.g. 12V DC LED strips, 12V DC LED downlights, 12V DC LED spotlights, etc. Power output is enough for e.g. 2,5 meters of COB 10W LED strip. The height of this LED driver is 18 mm and that’s what makes it a conveniently compact-sized LED driver. Regarding safety, this driver has a short circuit protection, overload protection and overheat protection. Out of these the fault and overload protection function with a power cut principle. It means that in a problem situation the LED driver will start to cut the power and makes the lights blink. Power cut continues until fault has been fixed. Overheat protection cuts the power from 12V side –> lights turn off. Lights can be turned on by turning the power back on. The protection works the same way in other high quality LED drivers as well. The driver cools itself with the surrounding ventilated air. So it is recommended to install in such a place where the warm air gets to mix with surrounding air.

Sufficient LED driver output

The maximum power output of this LED driver is 30 Watts and operating voltage 12 Volts. When you are thinking about picking a suitable LED driver for your project, it is recommended to pick something with a little more power than what the maximum load is going to be. We have a great blog post about choosing LED drivers and their power outputs and it can be found here. The output of this driver is enough for e.g.:

Max 5-6 meters of 4.8W LED strip
Max ca. 2,5 meters of 10W COB LED strip
Max 5 pcs of 5W LED downlights
Max 5 pcs of 5W LED spotlights
Max 9 pcs of 3 Watts LED spotlights



Compatible tested dimmers:

Additional compatible dimmers will be added as more testing situations occur.

Benefits:

  • flicker-free dimming
  • Smooth adjustment
  • Slim design
  • Overload protection
  • Overheat protection
  • Fault protection
  • Full scale dimming 0% – 100%
  • 10% minimum load
  • Safe TUV-CE, RoHS

Applications:

  • 12V LED strips
  • 12V LED downlights
  • 12V LED spotlights
  • 12V LED modules
  • 12V small LED spots

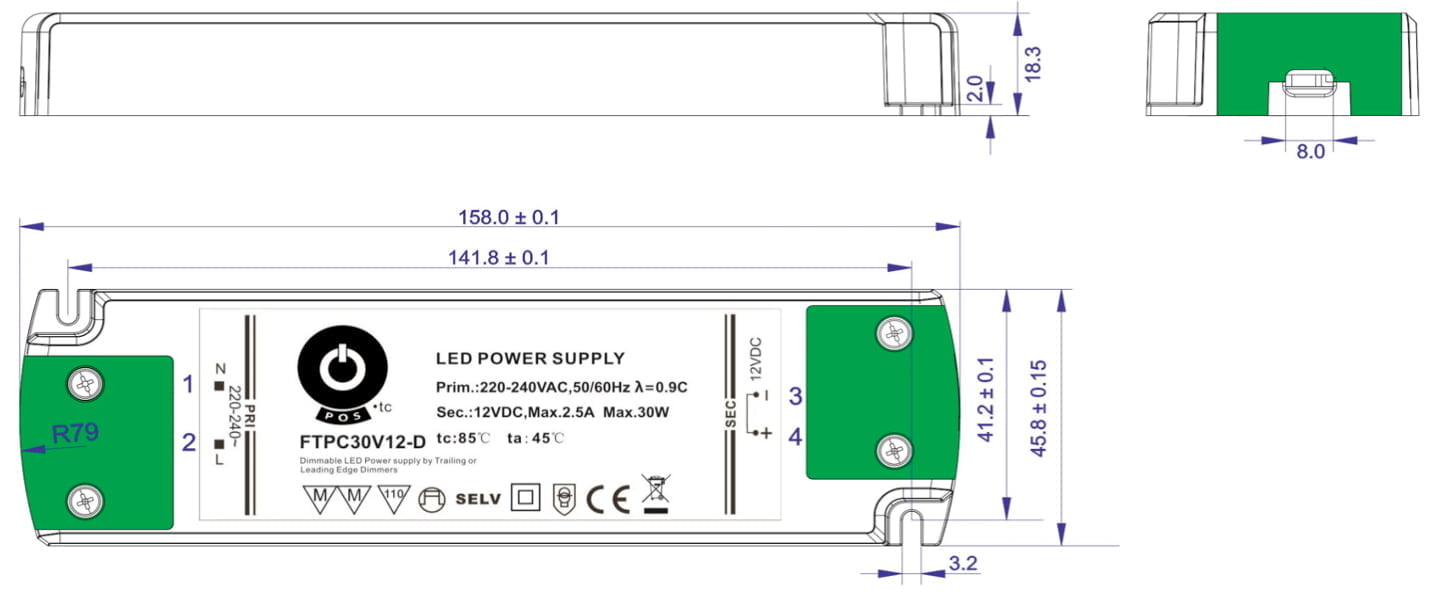

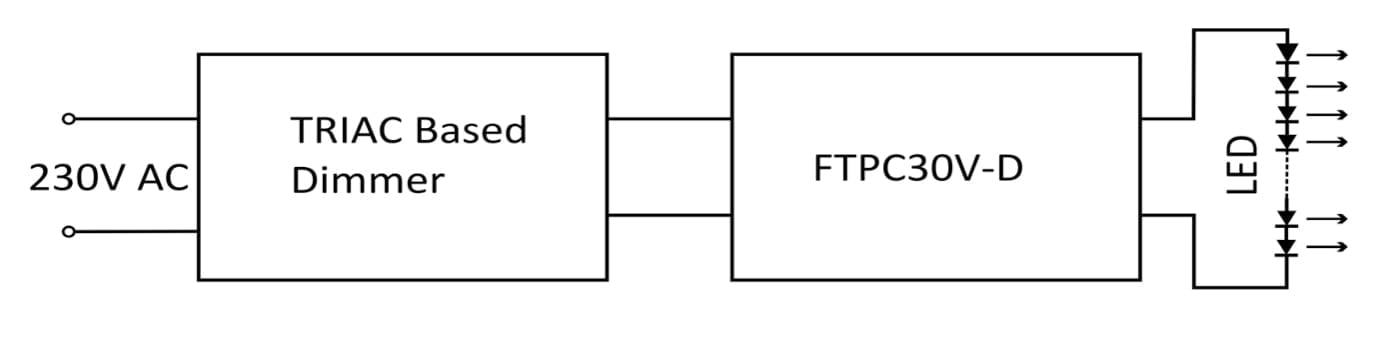

Dimensions and coupling instruction:

The general safety distance from LED driver to surrounding materials is 25 mm above and to the sides. Usually this is not a problem even in slim ceiling roofing. A more typical problem in low roofings is whether the driver will fit through the mounting hole onto the celing paneling. The length of this driver is 158 mm so it will likely fit. If there is a place for the driver near a service hatch then the problem is easy to solve.



Dimmable LED driver

Dimmable LED driver







Dimmable LED driver

Specifications

Väri
Käyttöjännite

200-240V AC

Maksimi teho

30 W

Lähtövirta

2.5 A

Lähtöjännite

12V DC

Tehokerroin

> 0.9

Käyttöympäristö

‘-20°C….+45°C

Mitat
Paino

200 g

Turvallisuus
IP-luokitus

IP20

Suojausluokka

II

Turvallisuus standardit

EN 61347-1, EN 61347-2-13

EMC

-3, -4, -5, -6, -8, ‘-11; EN55024

EMC standardit

EN55015, EN55024, EN61000-4-11, EN61000-4-2, EN61000-4-3, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61547

Takuu
Sertifikaatti

CE

Tuotemerkki

POS

Reviews

  1. Finnish

    Kimmo Partanen (verified owner)

  2. Finnish

    Kim K. (verified owner)

    Toimiva muuntaja, helppo asentaa. Johdinterminaalit saisivat olla suuremmat 2,5mm2 piuhan saa juuri ja juuri sopimaan toisiopuolen terminaaleihin.

  3. Finnish

    Osmo (verified owner)

    Toimii hyvin Busch Dimmer 6513U 102 säätimen kanssa, ei inise.

  4. Finnish

    Jukka (verified owner)

  5. Finnish

    antero v. (verified owner)

    Nykyisellä himmentimellä alkaa valot (5 kpl 2.3 W led lamppuja) muuntajan takana vilkkua voimakkaasti, kun himmennintä säätää kirkkaammalle. Uusi himmentäjä on tilattu ja se korjannee tilanteen.

  6. Finnish

    Henri / Ledtek (store manager)

    Hei Antero. Kiitos kirjoituksesta. Ledien himmennyksessä on tärkeää, että kaikki kolme komponenttia ovat yhteensopivia: valonlähde, muuntaja ja säädin.
