Triac Dimmable POS LED Driver 50W 12V

SKU: LT-FTPC50V12-D Category: Tags: , , , ,

39,90  sis. ALV 24%

From 4,51 €/month (36 months)
Read more
  • Suosittu
  • Edullinen
  • Turvallinen
  • Himmennettävä
In stock

In stock

nopea
Nopea
toimitus
paketti
Edulliset
toimituskulut
lippu
Suomalainen
verkkokauppa

Tuotekuvaus

Triac Dimmable LED Driver 50W 12V

POS Triac Dimmable LED Driver. Decent 50 Watts of power is enough for e.g. 4,5 meters of 10W 12V COB LED strip This is both Leading edge (RL) and Trailing edge (RC) configurable. Complete adjustability can be achieved with for example ABB 2-100VA dimmer. Electrical number 2619376. Other manufacturers have compatible dimmers for this driver as well. For example Ensto, Schneider and several other generally used brands in Finland.

If you would like a remote controllable LED dimmer, you will not need this driver. If you would like an LED dimmer that is remote controllable, a suitable LED driver in that case is a normal non-dimmable LED driver where the dimming happens after the driver. In non-dimmable drivers there is no mention of triac, dali or other dimming techniques that would happen on the front side of the driver. For non-dimmable drivers there are several good LED dimmers and those you can find in our LED dimmers category.

Installing a dimmable LED driver

This LED driver is suitable for e.g. 12V DC LED strips, 12V DC LED downlights, 12V DC LED spotlights, etc. There is enough for e.g. 4,5 meters of 10W COB LED strip. The height of this LED driver is 18 mm and that’s what makes it a conveniently compact-sized LED driver. Regarding safety, this driver has a fault protection, overload protection and overheat protection. Out of these the fault and overload protection function with a power cut principle. It means that in a problem situation the LED driver will start to cut the power and makes the lights blink. Power cut continues until fault has been fixed. Overheat protection cuts the power from 12V side –> lights turn off. Lights can be turned on by turning the power back on. The protection works the same way in other high quality LED drivers as well. The driver cools itself with the surrounding ventilated air. So it is recommended to install in such a place where the warm air gets to mix with surrounding air.

Sufficient LED driver output

Maximum power output of this LED driver is 50 Watts and operating voltage 12 Volts. When you’re thinking about a suitable driver for your LED project, it is recommended to pick a slightly more powerful LED driver than what the maxium load is going to be. Here you can check out a great blog post about choosing LED drivers . The output of this driver is enough for e.g.:

Max 8-9 meters of 4,8W LED strip
Max ca. 4,5 meters of 10W COB LED strip
Max 8-9 pcs of 5W LED downlights
Max 8-9 pcs of 5W LED spotlights
Max 14-15 pcs of 3W LED spotlights



Confirmed compatible light dimmers:

More compatible dimmers will be added as they are tested.

Benefits:

  • flicker-free dimming
  • Smooth adjustment
  • Slim design
  • Overload protection
  • Overheat protection
  • Fault protection
  • Full scale dimming 0% – 100%
  • 10% minimum load
  • Safe TUV-CE, RoHS

Applications:

  • 12V LED strips
  • 12V LED downlights
  • 12V LED spotlights
  • 12V LED modules
  • 12V small LED spots



Dimensions and coupling instruction:

The general safety distance from LED driver to surrounding materials is 25 mm above and to the sides. Usually this is not a problem even in slim ceiling roofing. A more typical problem in low roofings is whether the driver will fit through the mounting hole onto the celing paneling. The length of this driver is 158 mm so it will likely fit. If there is a place for the driver near a service hatch then the problem is easy to solve.



Triac LED driver

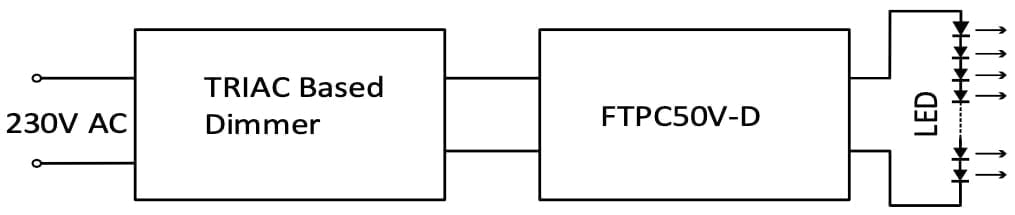

Connecting triac LED driver







Dimmable LED driver
