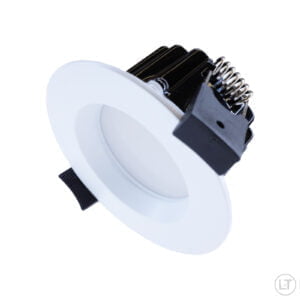

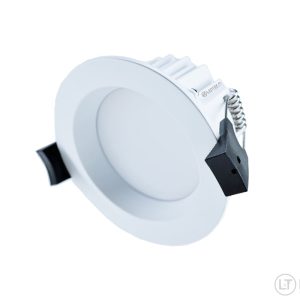

Dimmable LED downlight

This is the one! Adjustable angle and a low-frame 7W LED downlight that is triac-dimmable. You can create a stylish and modern general lighting in both new buildings and renovations. Thanks to CRI90 LEDs the quality of light is excellent and color of the light is a comfortable warm white 3000K. Due to excellent quality of light, skin looks natural, color of clothes looks right and it’s comfortable to spend time in such a space. Quality of light has a great impact on comfort!

Inventory sale

Quality of light matters

Color Rendering Index (CRI) tells you how well different colors are reflected by the light source in comparison to sunlight. Index measured in range 0–100. Perfect 100 tells that the colors under the light source look the same as they would be under natural sunlight.

High CRI value is important especially at home, in photography, stores, markets, restaurants and other spaces where you want colors to look natural and rich. It is comfortable to spend time in a high-quality-lit spaces. Wellbeing increases. High quality of light is somewhat like a fast Internet connection. When you get used to it you don’t want to switch to worse anymore.

Measuring CRI value requires a special type of light tester. We have such a device. CRI of this LED strip is over 90 which means that the quality of light is excellent.

Is this LED downlight dimmable?

Of course! Dimming the light works with the included triac-dimmable LED-driver, which is compatible with most of the LED dimmers available in Finland. Compatible dimmers in for example ABB and Schneider selection. You can dim the lights in the range of 10% – 100%. The included LED driver will not make a squeaking or buzzing sound when dimmed and the light will not flicker. Correctly chosen dimmer will not make any kind of sound.

Compatible dimmers for example:

LED dimmer AC white

Schneider Exxact 315

ABB 2-100 VA Jussi

ABB 2-100 VA Impressivo

Other compatible dimmers are available for sure. The plastic cover of ABB dimmer fits on the first dimmer in the list.

What do I need for installations?

You will need the lights and a certified electrician. Technical details mention 68 mm cut-out. The frame of the light is 85 mm. Make such a cut-out that it will be covered. Installation depth requirement only 28 mm and an additional 25 mm cooling space.

Safety

The most important part regarding safety is a safe-to-use LED-driver which can be found in this downlight. This downlight LED-driver is CE certified and passes that required safety standards. The LED-driver has a double L&N connectors which makes installation quick and easy. Electricians appreciate it.

Adjustable angle

This downlight can fulfill the most demanding requirements as well. Despite having a low frame its angle can be adjusted. This is a very important feature to have in oblique ceilings and in cases where you would like to aim the light in another direction.

Applications

Kitchen, dining room, kitchen island, living room, bedroom, utility room, hallway, corridor, lobby, WC, technical room, walk-in-closet

CRI90, best quality

For builders, repairers, renovations

Long-life

No ultraviolet or infrared radiation

What if the light breaks down?

The downlight and driver are replaceable. The LEDs inside the downlight cannot be replaced. Well, of course you can, but it is not worthwhile. There is a quick connector between the downlight and the driver, so it is easy to replace either one. Very rarely the downlight itself presents any flaws. Sometimes there has been some kind of flickering and it has been solved by replacing the downlight. If the product does not light up at all, the problem is usually in the driver and switching the driver will fix it. Easy.



Technical details for the included small LED-driver:

Operating voltage: 200-240V AC
Input frequency: 50 Hz
Output current 170 mA
Output voltage: 28-40 V DC +-5 %
Power factor: ≥ 0.9
Size: Length 140 * Width 40.5 * Height 25 mm
Weight: 118 g
Screw connectors L & N
115 mm long cables on the low voltage side + quick connector that matches the downlight connector.
Operating temperature: -20…+40°C

Safety class: II SELV
Protection class: IP20 (non-waterproof)
Protections: Fault protection, overload protection
CE certified
CE-EMC passed
RoHS

Dimmable with TRIAC dimmer
