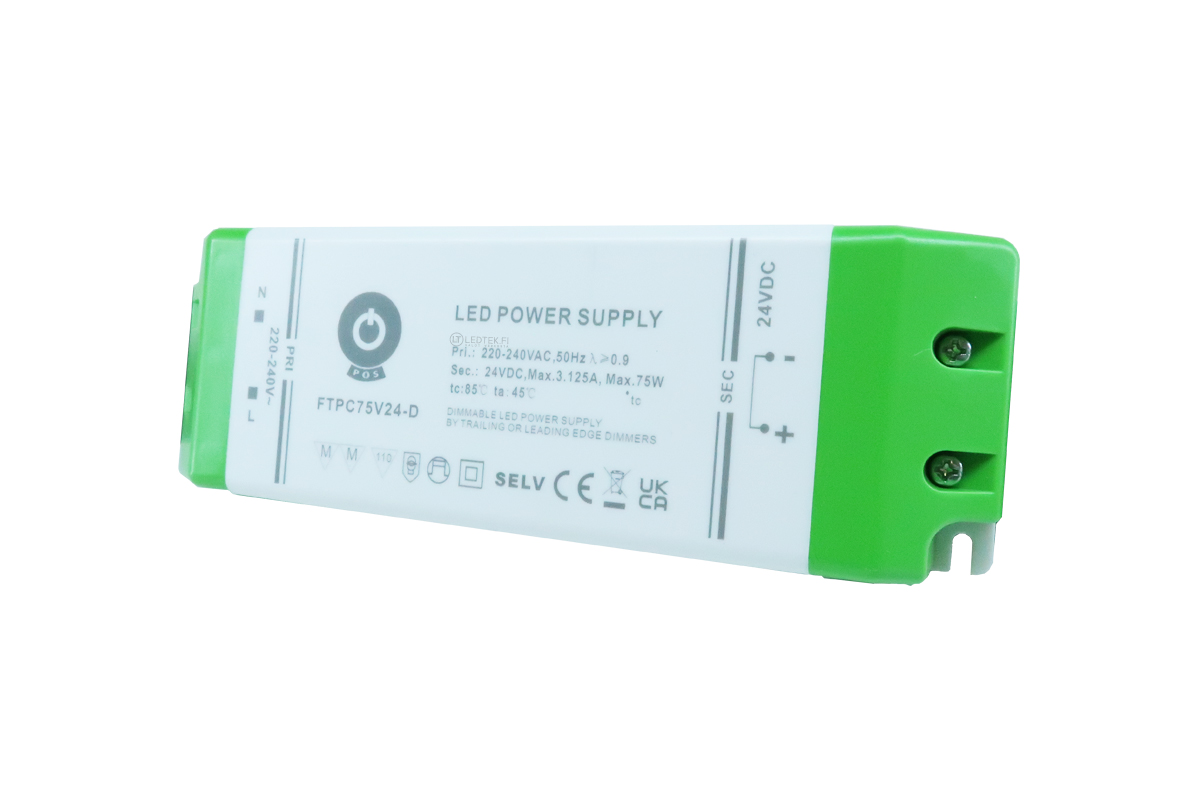

Triac Dimmable POS LED Transformer 75W 24V

Triac dimmable LED transformer 75W 24V

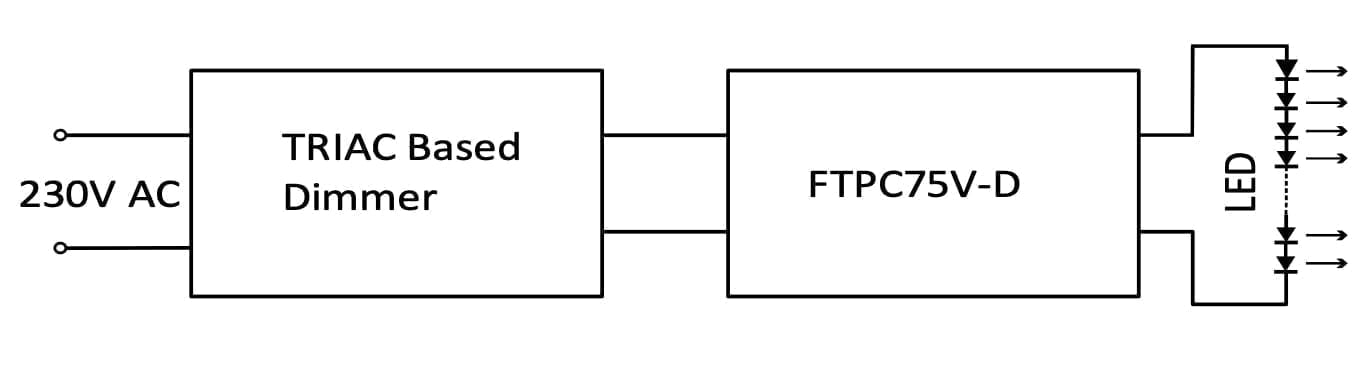

POS triac dimmable LED transformer. It has 75 Watts of power and is sufficient for powering a 24V LED strip in the kitchen, for example. This is Leading edge (RL) and trailing edge (RC) adjustable. Perfect control is achieved, for example, with ABB’s 2-100VA controller. Electrical number 2619376. Other controllers that work with this transformer can be found in our light controllers product group.

If you want a remote-controlled LED dimmer, do not choose this transformer. For a remote-controlled dimmer, choose a normal LED transformer where the dimming takes place after the transformer. That is, a transformer that does not have triac, Dali or push dim features.

LED transformer installation

This 75W 24V triac LED transformer is suitable for example for 24 V DC LED strips, 24 V DC LED downlights, etc. The power is enough for a full roll of COB 12W LED strip, for example. The length of this LED transformer is 170 mm, height 31 mm and width 56.8 mm. A perfectly sized LED transformer. Regarding safety, there is short-circuit protection, overload protection and overheating protection. Of these, the short-circuit and overload protection work on the power cut principle. This means that in a problem situation, the LED transformer starts to cut off the power and it makes the lights flicker. The power cut continues until the fault is removed. The overheating protection cuts off the power from the 24 volt side –> the lights go out. The lights can be turned on by turning the power on again. The protections also work in a similar way in other high-quality LED transformers . The transformer will cool itself with air circulating around it, so install it in a place that has a decent air flow. The transformer will not heat up significantly.



Benefits:

• Flicker-free dimming
• Soft adjustment
• Reasonable size
• Overload protection
• Overheating protection
• Short-circuit protection
• Full scale dimming 0% – 100%
• 10% minimum load
• Safe TUV-CE, TUV EMC

Applications:

• 24V LED strips
• 24V LED downlights
• 24V LED spotlights
• 24V LED modules
• 24V LED spots
