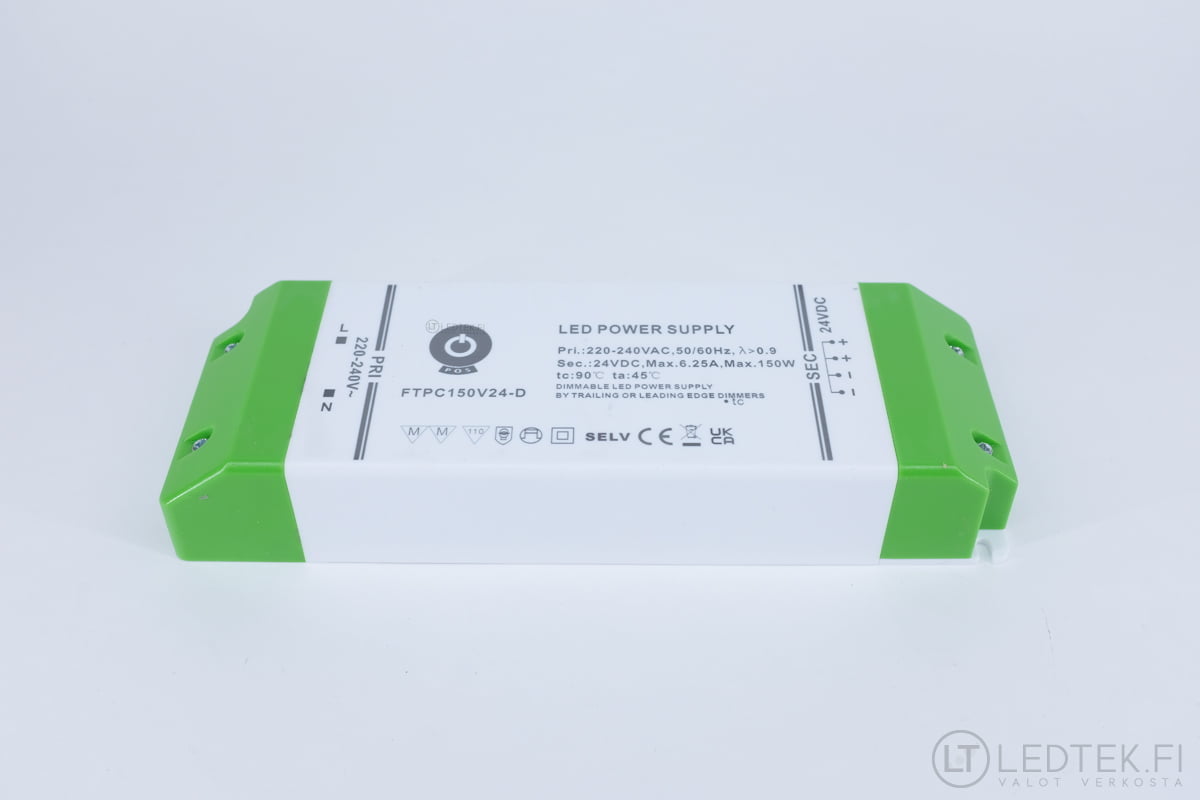

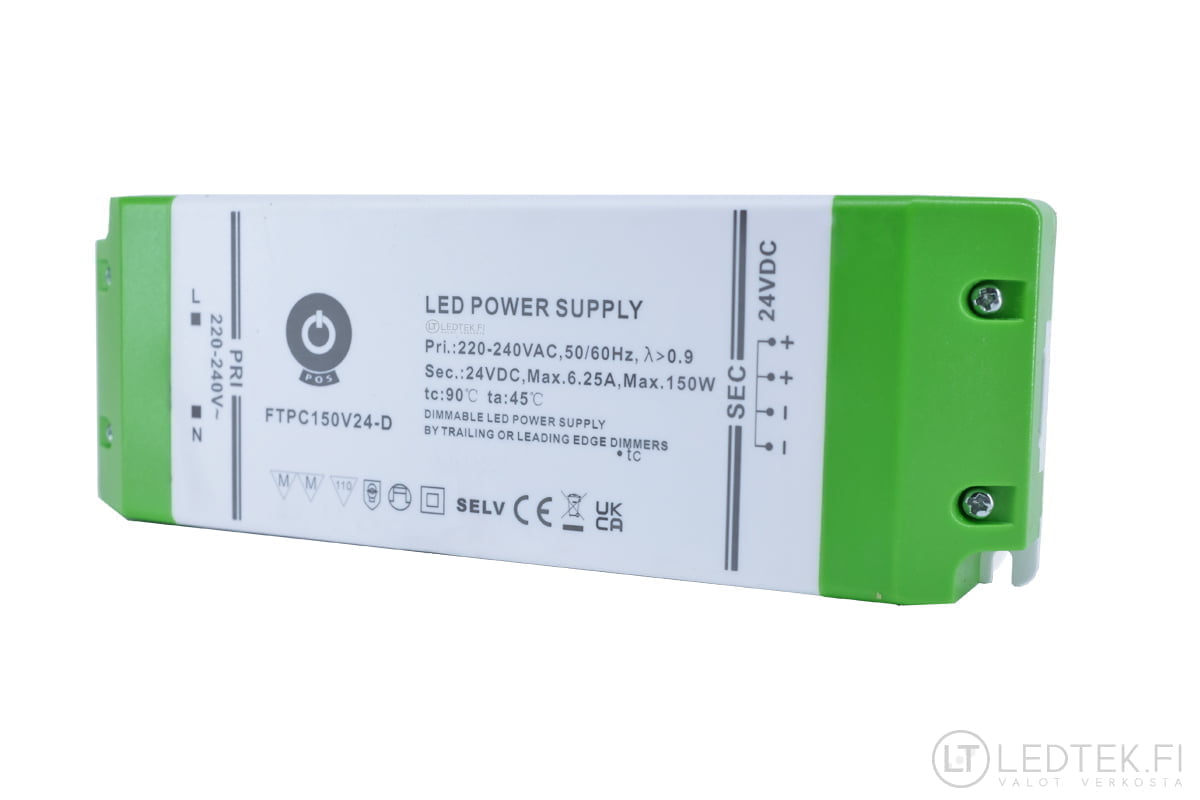

Triac Dimmable POS LED Transformer 150W 24V

Triac dimmable LED transformer 150W 24V

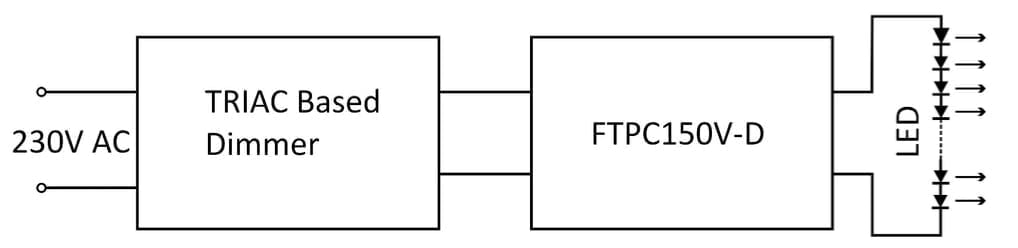

POS triac dimmable LED transformer. The power is 150 Watts and is sufficient for example to power a 24V LED strip in the kitchen and even larger installations. This is Leading edge (RL) and trailing edge (RC) adjustable. Perfect control is achieved, for example, with ABB’s 2-100VA dimmer. Electrical number 2619376. Other regulators that work with this transformer can be found in our dimmers product group.

If you want a remote-controlled LED dimmer, do not choose this transformer. In that case, choose a normal LED transformer where dimming occurs after the transformer. That is, a transformer that does not have triac, Dali or push dim features.

LED transformer installation

This 150W 24V triac LED transformer is suitable for 24 V DC LED strips, for example. The power is enough for two 5-meter rolls of COB 12W LED strips, for example . The length of this LED transformer is 195 mm, height 31.2 mm and width 67.1 mm. A perfectly sized LED transformer. Regarding safety, there is short-circuit protection, overload protection, overvoltage protection and overheating protection. Of these, short-circuit and overload protection work on the power cut principle. This means that in a problematic situation, the LED transformer starts to cut off the power and it makes the lights flicker. The power cut continues until the fault is removed. The overvoltage protection and overheating protection cut off the power from the 24 volt side –> the lights go out. The lights can be turned on by turning the power back on when the faulty condition has been resolved. The protections also work in a similar way in other high-quality LED transformers. The transformer cools itself with help of circulating air, so install it in a place where the air can flow. The transformer does not heat up significantly.



Benefits:

• Flicker-free dimming
• Soft adjustment
• Reasonable size
• Overload protection
• Overheating protection
• Short-circuit protection
• Full scale dimming 0% – 100%
• 10% minimum load
• Safe TUV-CE, TUV EMC

Applications:

• 24V LED strips
• 24V LED downlights
• 24V LED spotlights
• 24V LED modules
• 24V LED spots
