Draka MSO 2×0,75 N VA P2/200 – 5m
€1,50
Description

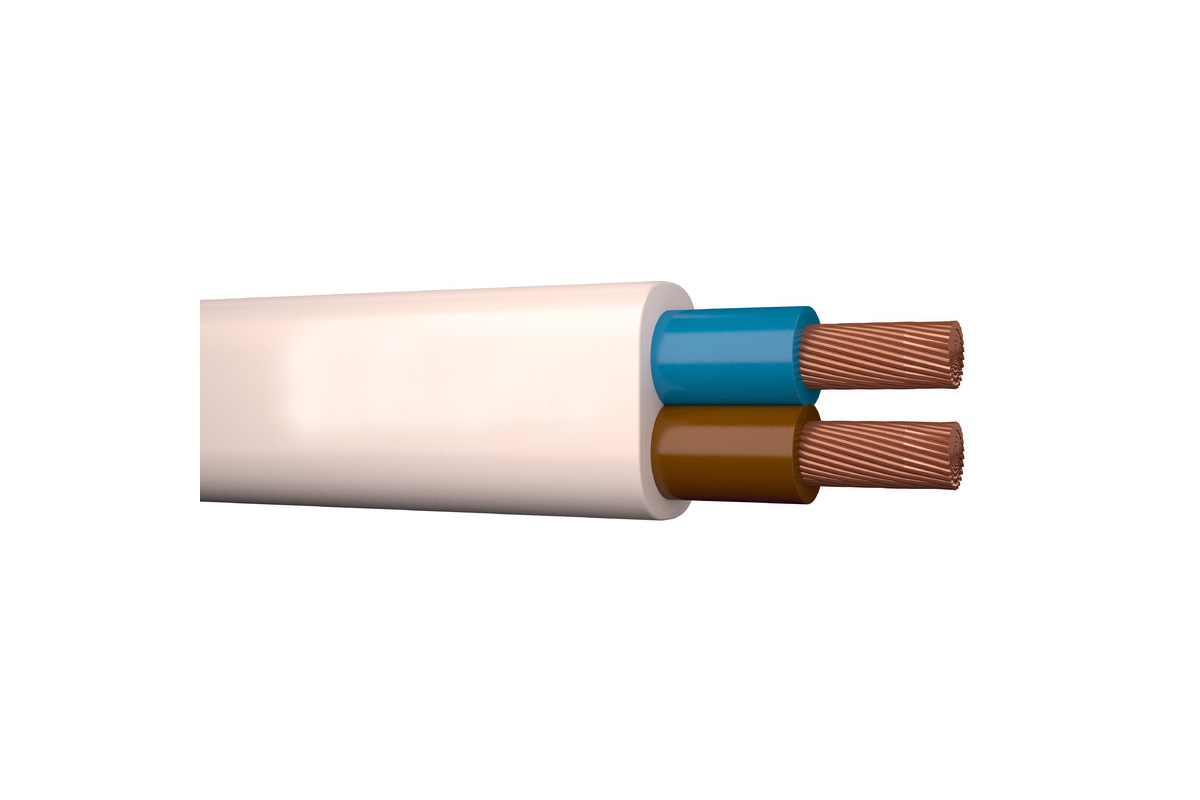

Thin, flat, flexible plastic insulated connection cable MSO 300V, H03VVH2-F. Manufactured by Draka
Type: MSO 300/300 V = H03VVH2-F
Usage: As a connection cable in households and offices for light installations.
Cannot be used in: kitchenware, heating equipment, outdoors, industrial spaces, agricultural or portable tools. If the cable is going to be under constant stress due to bending or twisting, it is recommended to use a circular cable instead.
Structure: Flexible fine thread copper wire, PVC insulation, color coded. PVC plastic insulation surrounds the two parallel wires. Flat cable.
Electrical number: 04 181 20
This is a quite suitable cable for LED installations. White, flexible and the wires have been color coded brown & blue.
Contents of the package:
Sold in packs of 5 meters. If you pick 2 pcs, we will deliver 10 meters etc.
Specifications
| Dimensions | 6 x 4 x 6 mm ca. |
|---|---|
| Warranty | 12 months |
| Certificate | CE |
| Conductor class | Class 5 = fine thread |
| Wire identification | Color |
| Number of conductors | 2 |
| Rated voltage U (V) | 300 |
| Rated voltage U0 (V) | 300 |
| Twisted pair | No |
| Protective insulation | PVC |
| Protective conductor | No |
| Outer layer material | PVC |
| Brand | Opal |
