CRI80 LED mini spotlight 1W dimmable 12V

LED mini spotlight 1W dimmable 12V – Furniture lamp

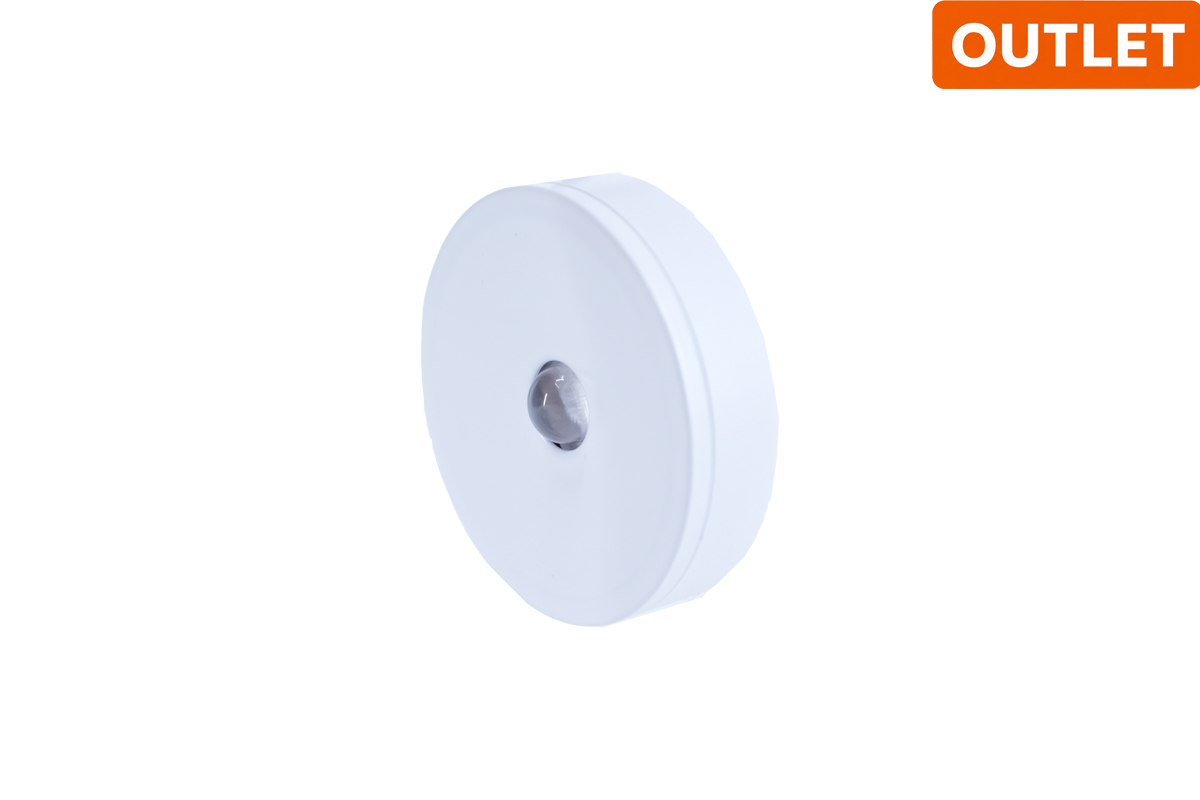

12 Volt 1W LED mini spotlight furniture lamp. Dimmable with normal low-current LED dimmers and dimmers + triac LED transformers. Surface-mountable on the furniture frame with two small screws or double-sided tape. Mounting accessories are included in the package. The overall height of the lamp is only 8 mm and the diameter is 32 mm, which means it is not much larger than a 2 euro coin. The quality of the light is good and the light color is warm white 3000K or neutral white 4000K .

LED spot installation

The transformer is chosen according to the size of the group. So you can take, for example, 4 of these = 4 x 1W = 4W load and for this you need one LED transformer. For example, 1 pc 20W 12V POS. You can install these instead of 12V halogens and save on your electricity bill. If you have 12 volt spike base halogens, then you have the wiring for 12-volt system already. You just need to take a sufficient number of these 12 volt LED minispots and a suitable LED transformer for the group. Halogen transformers cannot be used with LEDs. The protection class of the luminaire is IP42 and this means that this is intended for dry indoor spaces. This allows you to create a suitably luxurious feeling when lighting shelves and display cases.

LED spot dimming

For dimming, you can choose an LED dimmer with a remote control or, for example, a roller dimmer for a box location and a triac-dimmable LED transformer for this. Here, the light output is 100 lumens/spot and the light is produced by an Osram LED chip. You probably don’t need dimming, as this is a furniture lamp for spaces that do not require high illumination. However, if it feels too bright, a 5-24V wireless dimmer or touch button is very suitable for this purpose.

White and black lamps are in stock with 3000K and 4000K light. Choose the appropriate lamp body color and light color above.

CRI80 quality

The lamp body is made of aluminum

For builders, renovators, furniture manufacturers

Long-lasting

No UV or IR radiation

You can chain the lamps by using, for example, wago connectors
