Sauna LED Lighting Set 3000K 12V TRIAC Dimmable

Sauna LED Lighting Set 3000K 12V TRIAC Dimmable

Complete dimmable LED lighting set for sauna installations. The set includes a high-quality Ledtek CRI90+ LED strip and a 12V TRIAC-dimmable LED driver, allowing the lighting to be controlled with a compatible wall dimmer.

The warm white 3000K light creates a comfortable and relaxing atmosphere, while the high CRI90+ colour rendering provides natural-looking light.

Package includes

– 1 × CRI90+ LED strip, 5 m
– 1 × 12V TRIAC-dimmable LED driver
– 4 × silicone end caps for the LED strip
– Wiring instructions

Dimmable sauna lighting with a wall dimmer

This set is ideal when you want to control the sauna lighting with a traditional wall-mounted dimmer.

The TRIAC-dimmable LED driver allows smooth adjustment of the light output with a compatible mains dimmer. This makes it easy to set the lighting level to suit both bright cleaning light and softer mood lighting.

Installing the LED strip in a sauna

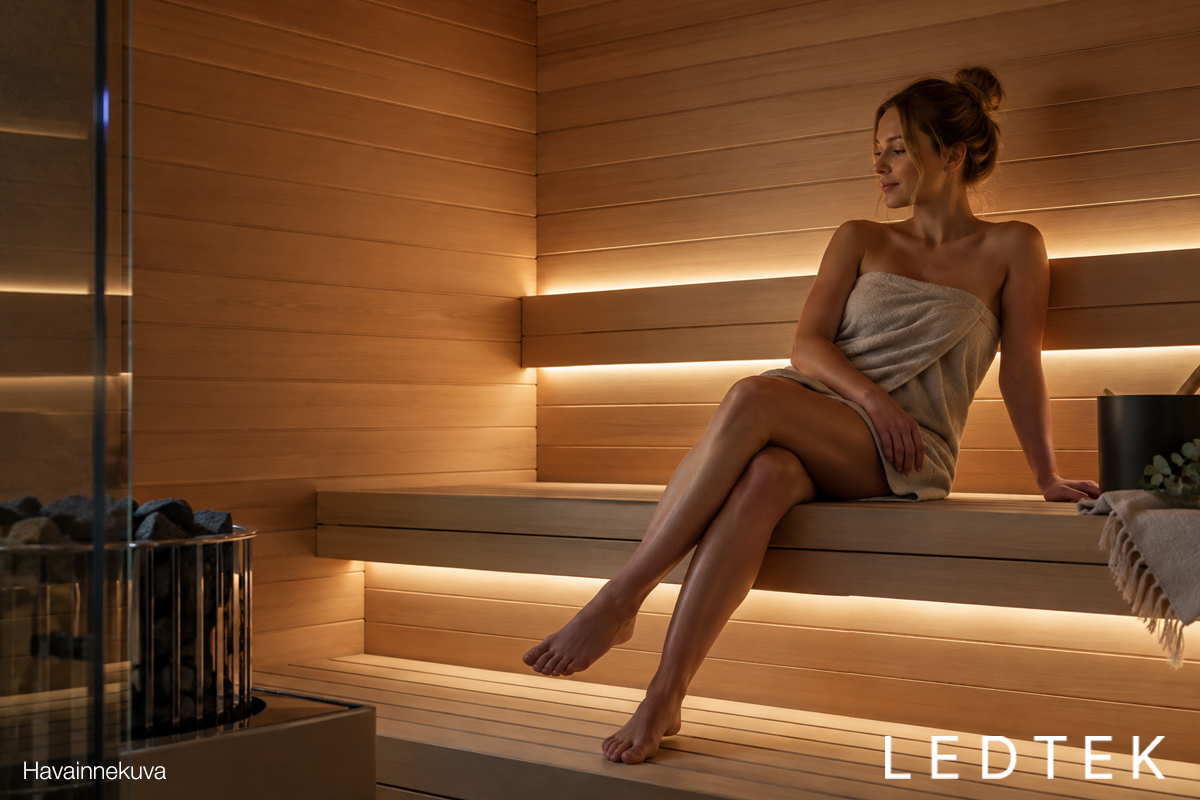

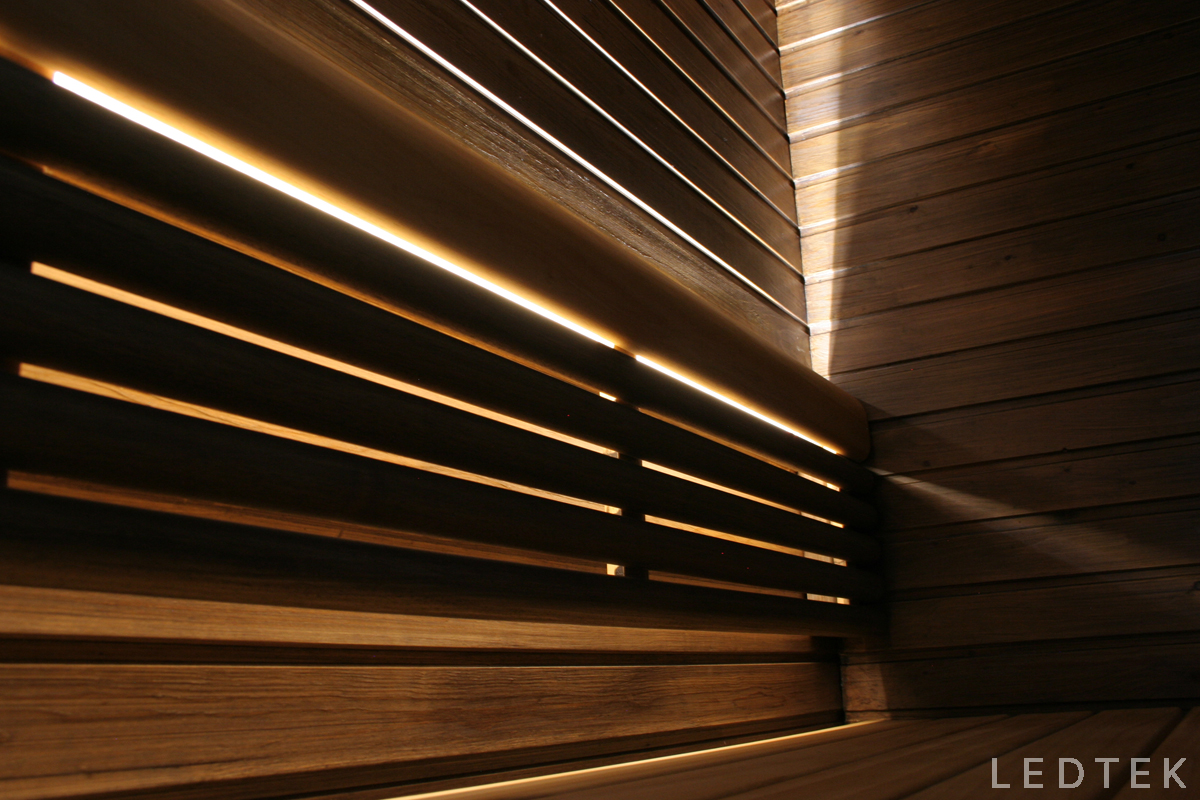

The LED strip can be installed underneath the sauna benches or behind the backrest to create indirect, glare-free lighting.

It has an adhesive backing, but for a more secure and finished installation we recommend using a suitable adhesive together with a plastic corner profile or aluminium LED profile.

Popular profiles for sauna installations include the 1708 and 1715 aluminium profiles, which are also available in black.

The LED strip is protected by a silicone tube and has an IP65 rating, making it resistant to splashes and suitable for sauna lighting installations.

The strip can be cut every 5 cm. After cutting, the end of the silicone tube can be resealed using a silicone end cap and suitable silicone sealant.

The LED strip has approximately 2 metres of connection cable at both ends.

TRIAC-dimmable LED driver

The included 12V LED driver is designed for TRIAC dimming and can be controlled with a compatible 230V wall dimmer.

Key features include:

– Smooth dimming
– Flicker-free operation with compatible dimmers
– Dimming range from approximately 0–100%
– Overload protection
– Overtemperature protection
– Short-circuit protection
– Slim design
– Minimum load approximately 10%

The LED driver has an IP20 rating and must be installed in a dry location. It must not be installed directly underneath the sauna benches or in another location exposed to moisture or water.

Compatible dimmers

The LED driver has been tested with several common wall dimmers. Always make sure that the selected dimmer is suitable for TRIAC-dimmable LED drivers.

Compatible dimmer models are listed in the accessories section below.

Designed for easy sauna lighting installation

Ledtek has supplied LED lighting solutions for homes and professional installations in Finland for over 15 years. The components in this set have been selected to work together, making installation straightforward.

Additional connectors and LED profiles can be used to adapt the set to different sauna designs. Black LED profiles work especially well in dark interiors, while white or aluminium profiles suit lighter saunas.

The wall dimmer is not included in the package.
