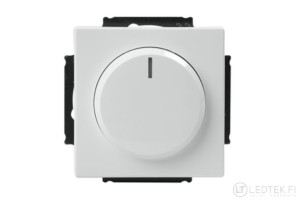

ABB Impressivo series 2-100VA light dimmer white

Slim Impressivo LED light dimmer, includes dimmer unit and center plate.
Mounting depth of the dimmer is 20 mm.

LED rotary knob dimmer is a 2-conductor solution (N-wire not required). Dimmer can be configured to operate on either RL or RC. The power range is for 2-100 VA LED loads. 10-400 W for other loads (see instruction manual). Keep in mind there is about a 20% power loss with traditional drivers. With electronic drivers the power loss is about 5%. Linear and silent adjustment is possible due to MOSFET transistor.

Allowed loads:

• Adjustable Retrofit (E27, E14, GU10)
• LED, 230V
• Halogen lamps, 230 V
• Adjustable Retrofit (GU5.3) LED, 12 V (driver L, LC)
• Halogen lamps 12 V (driver L, LC)
• Adjustable energy saving lamps
• Light bulbs 230 V
• Mixed loads allowed.

Electronic fault and overload protection. The general brightness of the dimmer can be changed adjusting the potentiometer on top right corner (min. config). Usage in switch coupling is possible in accordance with instruction manual.

Contents of the package:

Light dimmer, 1 piece
Center plate, 1 piece
Instruction manual, 1 piece
