Description

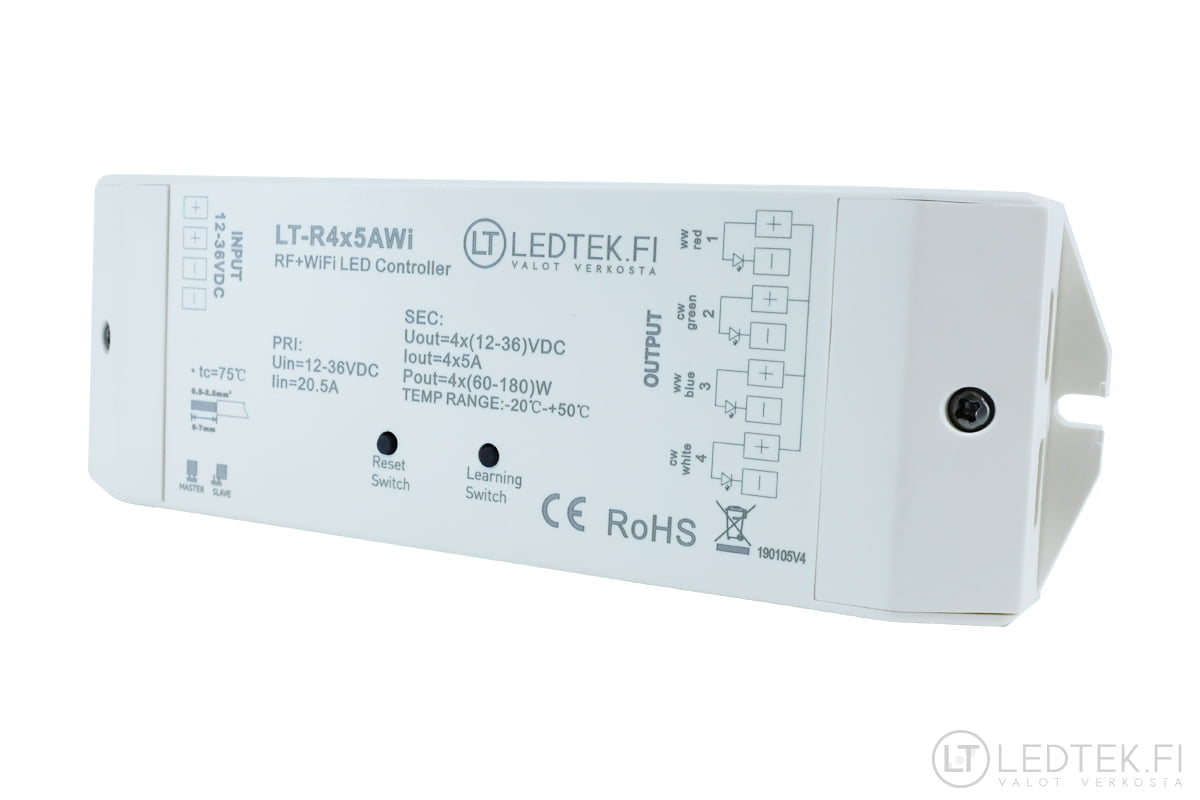

RF Wifi receiver with 4x5A power. Suitable for single, RGB and CCT LED strip controllers. It is possible to pair max. 8 controllers for 1 receiver. All controllers in this category are suitable. In addition to dimmers you can control this through Wifi with a phone/table app. The app is free for download on App Store and Play Store. The app is called Easylighting.
Dimmers and receivers sold separately.
Flicker-free dimming.
In addition to receiver you will need an LED-driver. If you have a 12 volt LED strip you will need a 12 volt LED-driver.
In this receiver there are four output connections and each has a max power of 5A. Each output works on the same channel. Cannot be programmed to separate channels. When more power is required, make connections in parallel.
Contents of the package:
4x5A RF Wifi receiver, 1 piece
English instruction manual, 1 piece
Specifications
Käyttöjännite | 12-36V DC |
---|---|
Maksimi kuorma | 4 x 5 A |
Maksimi teho | 240W (12V), 480W (24V) |
Koko | 170x59x29mm |
Paino | 100 g |
Väri | |
RF-taajuus, etäisyys | |
Kytkentä | |
Asennus | |
Ohjaimien määrä | |
Suojausluokka | IP20 |
Käyttöympäristö | ‘-20°C…50°C |
Takuu | |
Sertifikaatti | CE |
