LED stair light

CRI80 LED Stair Light 1W Dimmable 12V IP67

In stock


12 Volts 1W LED stair light / LED spotlight Dimmable with normal LED dimmers and when installed after triac LED drivers. Mount in 28 mm diameter hole. Dimensions 35 x 36 mm. 1 Watt light, so it will not heat up considerably. However it is good to leave some cooling space around as a safety measure. The quality of the light is good. It is available in 3000K warm white and 4000K natural white. The driver is chosen based on the size of the lighting group. So you can pick for example 16 of these = 16 x 1W = 16W and then you will need an LED driver. For exampleone 20W 12V POS or waterproof GLP 35W PRO. Can be installed in dry and wet locations. Spotlights have IP67 waterproof protection so it will fare well against water splashes. Of course there can be more than one driver and group but for a small group one driver is enough. For dimming you can choose an LED dimmer with a remote controller or for example a flush-mountable rotary knob dimmer and a triac dimmable LED driver.


Nice silver frame.

CRI80 quality

For builders, repairers, renovations


No ultraviolet or infrared radiation

Waterproof IP67

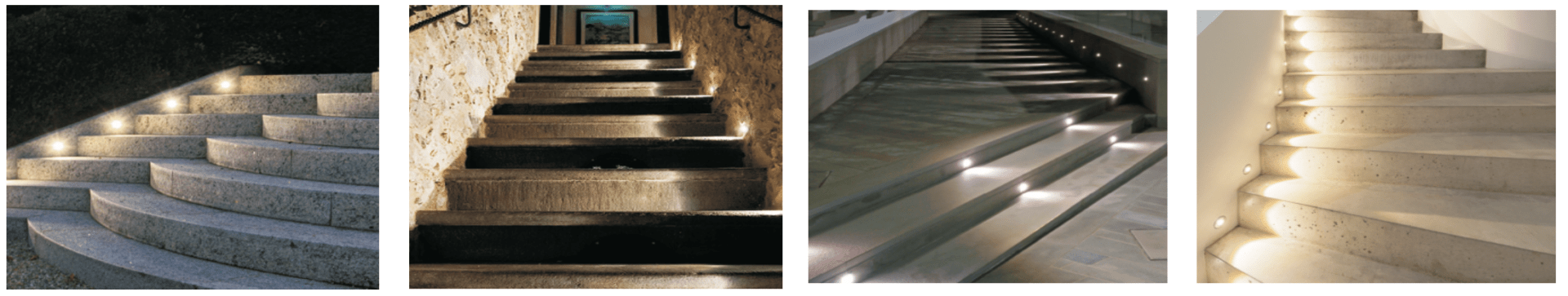

Grated obscure cover, thanks to which this light is a good choice for stairs, wall or barrier lighting, aisle lighting, swimming pool and other water pool lighting and other locations where you want to avoid pointing light upwards. Silver finish suits well for stone walls and wood surfaces

You can chain couple the lights by using wago connectors or waterproof 1 meter extension cords and t-branch extension cords.


LED stair light IP67

Tekniset tiedot

Sertifikaatti CE
Valaisimen halkaisija 35 mm
Asennusreikä 27 mm
Syvyys 36 mm
Paino 100 g
Teho 1 W
LED tyyppi SMD 2835 Epistar
Lumen 95 lm
Valaisukulma Light shines from between the bars., N/A
Värintoistoindeksi CRI Ra 80+
Suojausluokka IP67
Käyttöympäristö -20°...+40°C
Valaisimen väri Silver
Materiaali Aluminum
Liitosjohto 36 cm cord with waterproof male connector. Use as is or cut away.
Takuu 24 months
Color of the light 3000K warm white, 4000K natural white
